D-Link, a well-known network equipment brand, launched the D-Link DIR-859, a powerful routing product equipped with an 11AC chip. This route has 11AC dual-band wireless, super 5g signal coverage, 1750M wireless speed three significant features, its stable performance and superior transmission worth the wait, let us take a look at how the actual performance.
Product design and details
Its packaging is very special, such as the game's color carton packaging, Guan Gong and the big knife, named "11AC Guan Yunchang" version, a strong expression of this route will have first-class performance, "Strong routing" is also very few words Eye-catching, 5 times signal enhancement in the lower right corner, 1750M transmission, and 11AC are the three characteristics of this route.
The back of the box lists the characteristics of the product, printed on the router back interface icon.
Open the box, the inside of the package is a bit shabby, simple corrugated paper inlaid with the product, may also be for environmental protection.
Product description manual is also very simple, a thin piece of paper, a hardware overview, hardware installation, routing settings, etc., in fact, the real players do not need instructions.
The power adapter is a traditional D-Link style. The power adapter is 12V-1.5A.
Front view of the D-Link DIR-859.
Side view of the D-Link DIR-859.
The D-Link DIR-859 is designed as a ship, with a wide upper and lower profile, curved sides on each side, and a row of cooling holes on the front.
The right side is also inwardly curved, except that there are no cooling holes.
The front panel of the D-Link DIR-859 is divided into two parts. The front panel is mirrored, very bright, with a row of lights and icons, from left to right are: power indicator, Internet indicator, WPS indicator, Wireless indicator, there are four network indicators for four LAN ports.
Twill is engraved on the back surface of the panel, with the words “D-Link†printed in the middle.
The front and rear seams of the panel are also a row of cooling holes.
Rear view of the D-Link DIR-859.
On the right half of the back side, the yellow one is the Gigabit WAN port, the power connection hole, the power switch, the WPS button. Press the WPS button for 3 seconds to quickly connect with the WPS device.
On the left half of the back, there are four Gigabit LAN ports.
The D-Link DIR-859 has three non-detachable antennas. When you look closely, you can see that there are two copper wires passing through each antenna.
The other routes are all only one copper wire. The figure above shows the antenna of polar route 3. There are two lines only seen in D-Link DIR-859.
Compared with the polar route 3, the two are similar in size, and they are all three antennas, but the D-Link DIR-859 is slightly thicker.
The antenna of the D-Link DIR-859 is slightly longer than the average route.
The bottom of the D-Link DIR-859 is also covered with heat dissipation holes. It seems that the traditional routing has achieved the ultimate in heat dissipation, and the heat dissipation stability is guaranteed.
There are four circular feet on the bottom corners, two removable rubber pads on the front and two on the back. There are also two hook holes for easy fixing to the wall.
There is a row of nameplates on the bottom, there are product model names, LED status indicators and other states.
There is a reset hole in the middle of the bottom. The general route is to design the reset hole in the rear interface together. Press the reset hole for 10 seconds with a sharp needle to restore the factory settings.
Installation and function
The traditional route is generally without an APP, but the D-Link DIR-859 is equipped with a QRS phone, and both Apple and Android support it.
Follow the instructions of the APP step-by-step to connect to WiFi.
Perform WiFI setup and configure it soon. However, this app is used when it is configured for the first time, and there are no other functions behind it.
Without APP configuration, you can also use a PC to configure. Note that the setting interface is not compatible with the lower version of IE8. In the browser, enter the 192.168.0.1 open settings page, enter the broadband account and password, configure the WiFi password and administrator password, it is OK, it is still very simple and very user-friendly, compared with the traditional professional configuration interface has made great progress.
Entering the management page, the home page is a graphical display that indicates the network connection status, the connected client, and the Internet connection status.
In addition to the homepage, there are settings, advanced settings, and management sections. Each section has several subsections. Through subsections, we can achieve all the functions we need. Here are some important features.
Visitor functionality, which is a common feature of many smart routes today. The visitor area uses different WiFi names and passwords and cannot access the local device, ensuring the security and privacy of the home network.
The QoS engine function can prioritize the connected devices according to their needs. The levels are divided into the highest, the highest and the medium. Through the graphic design, the device can be dragged into the boxes at all levels, which is very intuitive and convenient. This is a major highlight of this route.
Inside the firewall settings, you can set DMZ, IPv4 rules, and IPv6 rules to effectively protect the network from attacks.
The port forwarding function can forward a port on a route to the port of a device to facilitate outside access. Site filtering can filter some web sites, but also to ensure network security.
There are also static routing and dynamic DNS functions, all for easy access.
The function is powerful, the firmware of the route needs to be upgraded constantly and updated, can realize through online upgrade and manual upgrade two ways.
Statistics, graphically displaying statistical information on the Internet, wired networks, and wireless networks for sending and receiving data are relatively intuitive, but it would be better if you can display the upload and download rates of each connected device and transfer data.
Signal strength test
Test environment: The home area is about 140 square meters, point O is the placement point of D-Link DIR-859; point A is the first test point, and it is separated from the wall by a distance of 5 meters from point O; B point is the second one The test points are separated from the wall by a distance of about 10m from point O. Point C is the third test point. It is separated from the route by two walls at a distance of about 13m from point O. Point D is the fourth test point. O point is about 10m, and two walls are separated from point A; point E is the fifth test point, and it is about 20m from point O. It is separated from O by two walls.
Test Method: In the five test points, the wireless coverage of the D-Link DIR-859 was tested using the WirelessMon Professional software.
After various points of testing, the D-Link DIR-859 performed well in wireless signal strength and signal coverage in all areas of the home. 2.4Ghz reached -21dBm at point O, point A reached -23dBm, point B reached -24dBm, point C reached -49dBm, point D reached -52dBm, and point E reached -54dBm. The 5Ghz reached -22 dBm at point O, point A reached -45 dBm, point B reached -38 dBm, point C reached -61 dBm, point D reached -69 dBm, and point E reached -65 dBm. Due to the limited family size, we believe that the use of this routing environment can at least meet the needs of home users.
Transmission speed test
Tested equipment: Two laptops, ASUS and Hewlett-Packard, ASUS as a server, two wired and wireless 2.4G connection routes, HP as a client, through the 2.4G connection routing. One handset, Huawei Mate7, uses 2.4G and 5G connection routes.

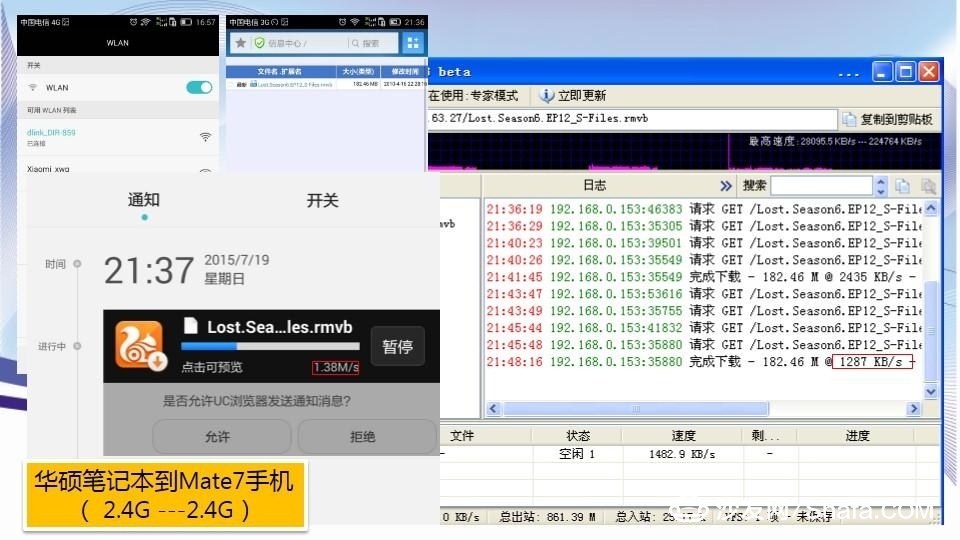

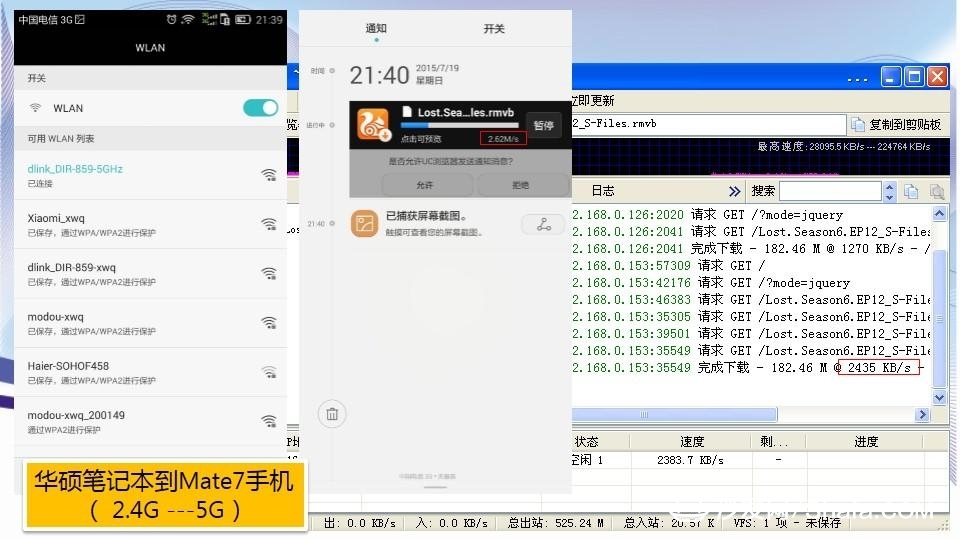

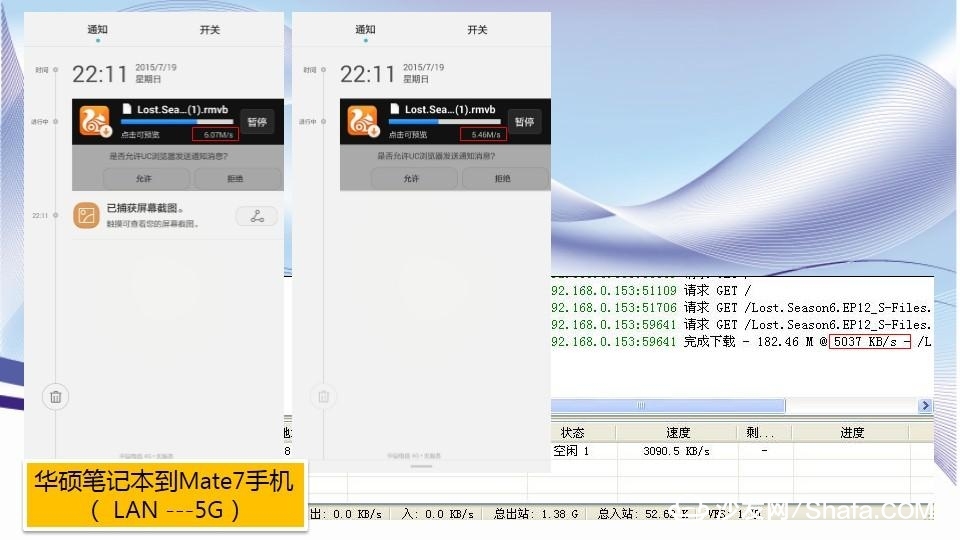

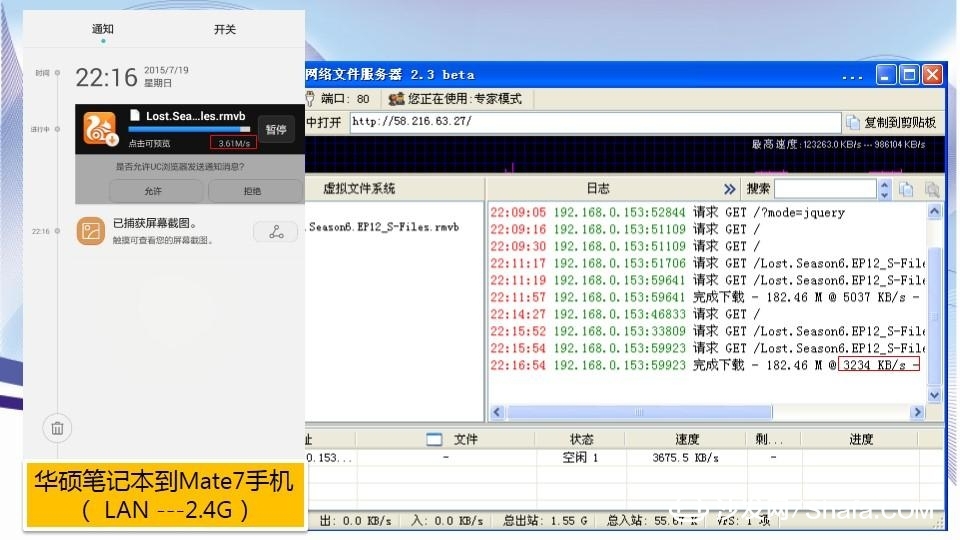

Test Method: Asus notebook installed HFS web server, HTTP download, other clients to download a 180M file through the browser. From laptop to notebook (2.4G---2.4G), notebook to notebook (LAN---2.4G), notebook to mobile (2.4G---2.4G), notebook to mobile (2.4G---5G) , Notebook to mobile phone (LAN --- 2.4G), notebook to mobile phone (LAN --- 5G) these several ways to test the transmission rate.

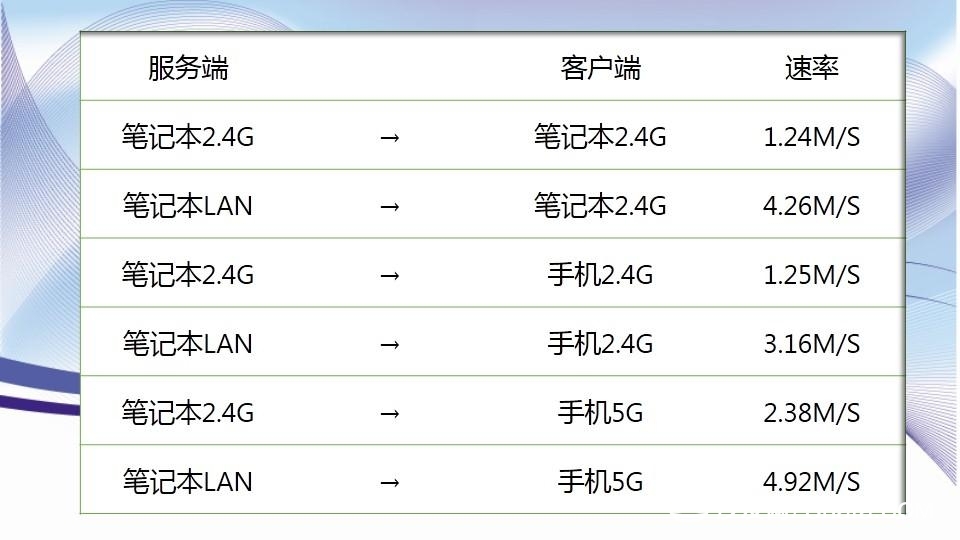

The D-Link DIR-859 uses 11AC and dual-band technology, and the maximum wireless transmission rate theory can reach 1750M (450+1300). Through the above test, we can see that through two-way 2.4G wireless transmission, the rate is about 1.2M/S; the server has a wired connection, the client is 2.4G, and the rate is about 3-4M/S, the client For 5G connections, speeds up to 5M/S. Since the test equipment has limited conditions, the best performance of this route has not been tested yet, but the test of this transmission rate is very stable and should belong to the level of high-end wireless routers.
Summary and Suggestions
D-Link DIR-859 routing, with 5 times stronger wireless signal, transmission rate of up to 1750Mbps, user-friendly configuration interface, QRS intelligent device wizard, continued strengths of routing products in the network signal strength, stable and fast transmission speed, Can fully meet the needs of individuals or families.
Of course, this route of mobile phone APP function also needs to be optimized and strengthened. For example, you can remotely set various functions, and the statistics displayed in the background are more detailed, allowing us to understand more.
